HERZAN
Our core mission is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users.

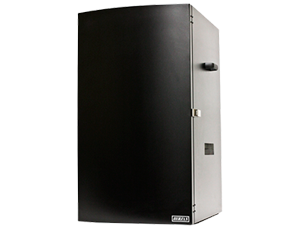

Silencer
Desktop Acoustic Enclosure
High performance acoustic isolation that rests on any desktop. The Silencer acoustic enclosure capitalizes on its compact design to deliver industry leading acoustic isolation performance for any research instrument or application. The Silencer was designed to provide instrument manufacturers and end users the utility of receiving broadband acoustic isolation performance.

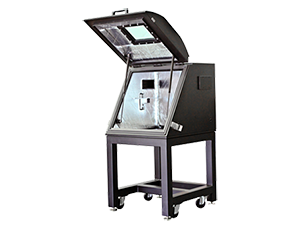

AEK-2002
Compact Workstation Acoustic Enclosure
The preferred solution for AFMs needing maximum protection against acoustic noise. The AEK-2002 acoustic enclosure builds on over 20 years experience improving the isolation technology within Herzan acoustic enclosures, delivering a field-tested and optimized solution for protecting sensitive instruments from disruptive acoustic noise.

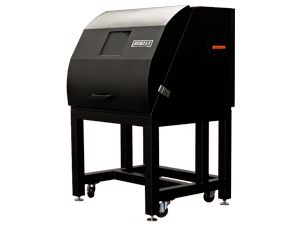

NanoVault
CLarge Workstation Acoustic Enclosure
The NanoVault acoustic enclosure combines high-performance acoustic lining with high-accessibility features to deliver a quiet and streamlined experience for researchers operating large microscopes and multiple instrument applications. The design and capability of the NanoVault enable researchers to operate their instrumentation to its fullest potential, even in the noisiest ambient environments.

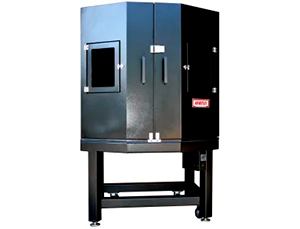

The Crypt
High-Access Workstation Acoustic Enclosure
Data SheetHerzan’s high performance acoustic enclosure for users requiring unfettered instrument access. The Crypt is a multifaceted enclosure, designed specifically to allow users with large instrument setups to access the perimeter of the instrument without having to move components around. The Crypt is suited for a wide variety of users, ranging from product test engineers to AFM researchers, all of whom receive some of the best acoustic isolation performance ever developed by a Herzan acoustic enclosure.

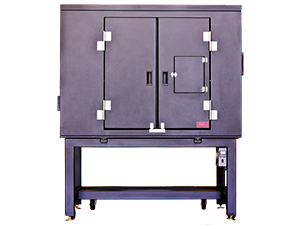

AEK-2011
Multi-Instrument Workstation Acoustic Enclosure
The AEK-2011 is Herzan’s largest workstation acoustic enclosure offering maximum protection against acoustic noise for large precision research microscopes, providing up to 50 dB reduction across a broad frequency range (50 – 15,000+). The AEK-2011 combines high-performance acoustic lining with an expansive interior volume, delivering the quietest operating environment for any research application limited by acoustic noise.

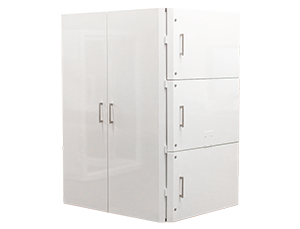

High-Access SEM Acoustic Enclosure
Technological advancements in electron microscopy make operating in a quiet and stable environment necessary. Herzan’s latest acoustic enclosure for electron microscopes ensures maximum protection from disruptive acoustic noise originating from pumps, chillers, and other loud laboratory equipment. Every SEM acoustic enclosure can be customized to the electron microscope’s specific requirements and research needs, ensuring the researcher receives optimal results from their microscope.

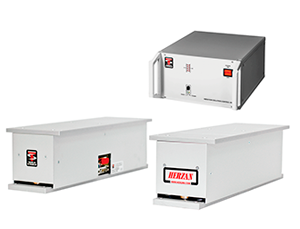

AVI-200
The AVI-200 platforms help users achieve more from their research by removing disruptive low frequency vibrations from affecting their measurements. The AVI-200 platforms are field-tested solutions, leading the industry in terms of low-frequency active vibration isolation performance (starting at 0.5 Hz) for compact microscopes performing nanoscale research. The AVI-200 platforms include a low-profile and modular design, becoming the perfect solution for users wanting an effective and easy-to-install platform to protect their high-load instruments from low-frequency vibrations.
Budget request

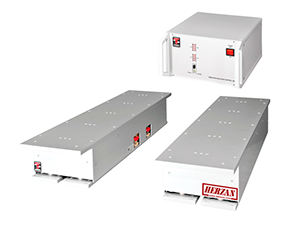

AVI-400
The AVI-400 platforms provide industry-leading active vibration isolation performance (starting at 0.5 Hz) for electron microscopes and similarly large research instruments. The AVI-400 platforms help users achieve more from their microscopes by removing disruptive low frequency vibration noise from affecting their measurements. The AVI-400 platforms incorporate a low-profile and modular design, simplifying the installation process by not requiring lifting equipment for installation for a majority of instruments (including most SEMs).

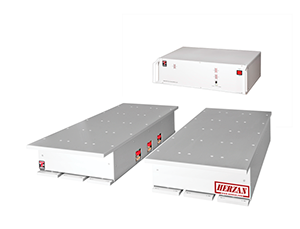

AVI-600
The AVI-600 platforms provide industry-leading active vibration isolation performance (starting at 0.5 Hz) for the precision research industry’s largest instruments (e.g. TEMs). The AVI-600 platforms help users achieve more from their instruments by removing disruptive low frequency vibration noise from affecting the quality of their measurement data. The AVI-600 platforms incorporate a low-profile and modular design, simplifying the installation process by not requiring lifting equipment for installation for a majority of instruments (including most SEMs).
Budget request

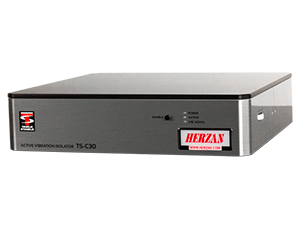

TS-C30
The TS-C30 active vibration isolation table is the latest innovation from the TS Series, offering substantial active vibration isolation performance for researchers operating compact, nanoscale microscopes. The TS-C30 is also Herzan’s most affordable active vibration isolation table available, delivering greater value for researchers requiring low-frequency vibration isolation and a slate of features directly benefiting their application.

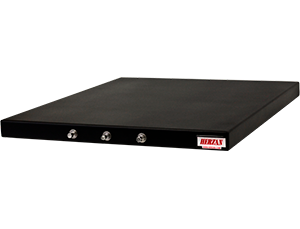

ONYX
The Onyx Series vibration isolation table is designed to isolate sensitive equipment from vibrations caused by foot traffic, HVAC systems, nearby operating machinery, etc. It consists of a steel tabletop supported by pneumatic isolators, which are easily inflated using an air-pump or other automatic air source. The Onyx Series integrates effortlessly with The Silencer acoustic enclosure to provide a complete environmental solution.
Standar NanoDamp
Workstations Designed for Any Lab Environment
Laboratory workstations are important solutions for researchers requiring unwavering reliability, ease-of-use, and vibration isolation performance. The NanoDamp Series (NDW Series) from Herzan builds on its two decades of experience tailoring solutions to meet the unique needs of their respective application. The NDW Series incorporates three forms of vibration isolation technology to address the wide range of isolation and budgetary needs for researchers.
Passive NanoDamp
Workstations Designed for Any Lab Environment
Laboratory workstations are important solutions for researchers requiring unwavering reliability, ease-of-use, and vibration isolation performance. The NanoDamp Series (NDW Series) from Herzan builds on its two decades of experience tailoring solutions to meet the unique needs of their respective application. The NDW Series incorporates three forms of vibration isolation technology to address the wide range of isolation and budgetary needs for researchers.

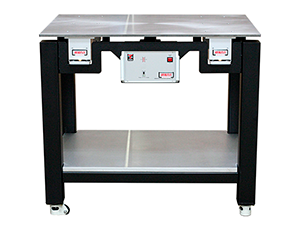

Active NanoDamp
Workstations Designed for Any Lab Environment
Laboratory workstations are important solutions for researchers requiring unwavering reliability, ease-of-use, and vibration isolation performance. The NanoDamp Series (NDW Series) from Herzan builds on its two decades of experience tailoring solutions to meet the unique needs of their respective application. The NDW Series incorporates three forms of vibration isolation technology to address the wide range of isolation and budgetary needs for researchers.

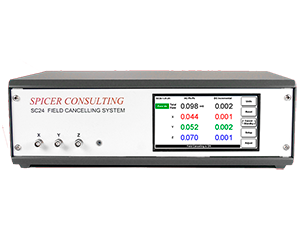

Spicer System
The magnetic field cancellation system from Spicer provides unmatched protection against AC and DC fields for high resolution electron microscopes. The Spicer System is designed to integrate seamlessly around an electron microscope, offering maintenance-free EMI shielding for any lab or research facility. Electron microscopy users often choose the Spicer System because it is a cost-effective solution that can vastly improve the imaging of most electron microscopes operating in environments with disruptive EMI noise.

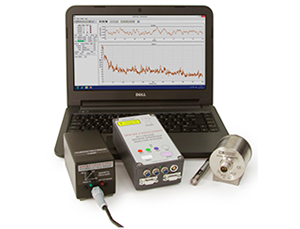

Spicer System
The SC11 is a comprehensive site survey tool delivering data acquisition and pre-processing capabilities for researchers needing discrete vibration, acoustic, and EMI measurements. With its extensive visualization techniques and post-processing plotting capabilities, the SC11 delivers a level of detail required for the research industry’s most advanced measurement instruments.

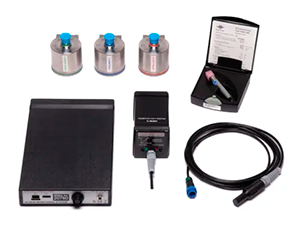

SC28 Monitoring System
The SC28 monitoring system enables long-term, uninterrupted measurements of magnetic fields, vibrations, acoustic noise, and temperature/humidity. This system is uniquely-designed to monitor the environment for electron beam instruments, including: Scanning Electron Microscopes (SEM), Transmission Electron Microscopes (TEM), Electron Beam Lithography tools, and SEM-based metrology and inspection tools.

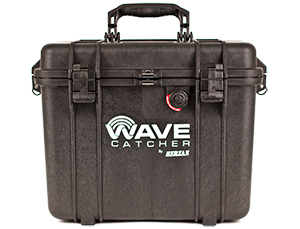

The WaveCatcher
The WaveCatcher tool has been developed and optimized to make site surveys easy, mobile, and user-friendly. Designed to be accessible and easy to understand for any user, it provides accurate measurement data at the touch of a button. With a wide range of hardware options, defining your WaveCatcher package is simple: just tell us what type of ambient noise you need to measure and in what frequency range, and we'll help you find the best solution for your research needs.
Budget request
